NeuroSphere - Interactive 3D Brain Atlas
An interactive 3D brain atlas platform featuring human and mouse brain visualizations with real-time neural simulations. Built with Three.js, featuring Desikan-Killiany Atlas (43 regions) for human brain and Allen CCFv3 Atlas (25 regions) for mouse brain with connectivity-based activity propagation.
Solo Developer
4 hours
Reader-first case study
This case study focuses on problem framing, implementation choices, technical constraints, and outcome.
Solo Developer
4 hours
Research project
2025
Where parts of the system are internal or institutional, this case study focuses on engineering scope, workflow design, and technical decisions rather than trying to simulate missing public artifacts.
Project Overview
NeuroSphere is a comprehensive 3D brain atlas platform that allows users to explore both human and mouse brain anatomy through stunning WebGL visualizations. The platform features interactive neural pathway simulations, region-specific information panels, and real-time activity propagation based on neuroanatomical connectivity data.
Demo Videos

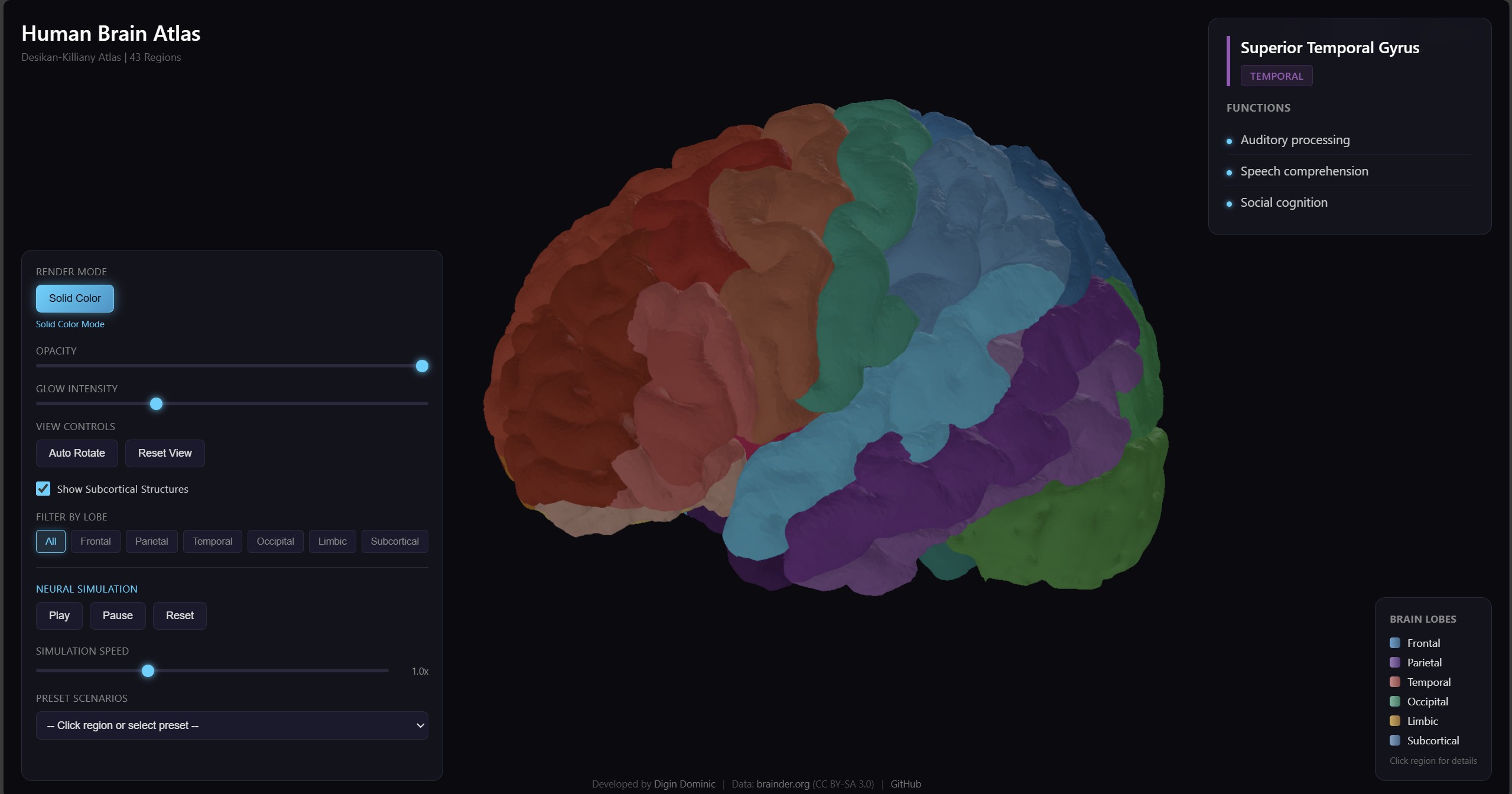

Human Brain Atlas
Mouse Brain Atlas
Project Details
Technologies Used
- Three.js (WebGL 3D Engine)
- Vanilla JavaScript (ES6+ Modules)
- CSS3 with Glassmorphism Design
- OBJ Mesh Loader
- JSON Connectivity Matrices
- GitHub Pages Deployment
Key Features
Human Brain Atlas
- 43 Anatomical Regions based on Desikan-Killiany Atlas
- 7 Brain Lobes with color-coded visualization (Frontal, Parietal, Temporal, Occipital, Limbic, Subcortical)
- Interactive Region Selection with detailed function information
- Neural Pathway Presets: Visual Processing, Motor Control, Language Production/Comprehension, Memory Encoding/Retrieval, Emotional Response, Attention Network, Decision Making, Resting State (DMN)
Mouse Brain Atlas
- 25 Regions from Allen CCFv3 Atlas
- Real-time Neural Simulations with connectivity-based activity propagation
- 8 Neural Circuit Presets:
- Whisker Sensation (barrel cortex pathway)
- Visual Processing
- Auditory Processing
- Motor Control
- Fear Response (amygdala circuit)
- Spatial Navigation (hippocampal circuit)
- Olfactory Processing
- Reward Processing (mesolimbic pathway)
Visualization Features
- Wireframe and Solid color render modes
- Adjustable opacity and glow intensity
- Auto-rotation and manual OrbitControls
- Region filtering by lobe/category
- Responsive design for desktop and mobile
Development Process
3D Rendering Architecture
Built with Three.js for high-performance WebGL rendering:
- Scene Management: Custom
BrainViewerclass managing scene, camera, renderer, and controls - Mesh Loading: OBJLoader for brain region meshes with custom material application
- Interaction: Raycaster-based mouse picking for region selection and hover effects
- Visual Effects: Custom glow shader and emission-based highlighting for active regions
Neural Simulation Engine (Mouse Brain)
- ConnectivityGraph.js: Loads and manages weighted connectivity matrix based on Allen Mouse Brain Connectivity Atlas
- RegionalActivity.js: Handles activity propagation using weighted connections between regions
- NeuralSimulation.js: Main controller for preset scenarios with timed region activations
Data Sources
| Atlas | Source | Coverage | |-------|--------|----------| | Human Brain | brainder.org (CC BY-SA 3.0) | Desikan-Killiany via FreeSurfer | | Mouse Brain | Allen Institute | CCFv3 Common Coordinate Framework |
Technical Highlights
- Coordinate System Handling: Allen CCF uses microns (5000-8000 range) requiring geometry translation and scaling to normalize with human brain coordinates
- Performance Optimization: Efficient mesh management, LOD considerations, and optimized render loop
- Modular Architecture: Separate modules for viewer, simulation, data, and UI components
- SEO Optimized: Full Open Graph and Twitter card meta tags, sitemap, robots.txt
Architecture
neurosphere/
├── index.html # Landing page with species selector
├── human/
│ ├── js/brain.js # Human brain viewer
│ ├── js/regions.js # Region metadata
│ └── models/ # OBJ meshes
└── mouse/
├── js/brain.js # Mouse brain viewer
├── js/simulation/ # Neural simulation engine
├── js/data/ # Region data, presets
└── data/connectome/ # Connectivity matrix
Scientific Context
The platform serves as an educational and research tool for:
- Understanding brain anatomy and regional organization
- Visualizing neural pathway activations
- Comparing human and mouse brain structures
- Demonstrating connectivity-based signal propagation
Deployment
- Platform: GitHub Pages with custom domain
- URL: https://digindominic.me/brain-threejs/
- Source: GitHub Repository
Future Enhancements
- Additional species (rat, macaque)
- VR/AR support
- Real experimental data overlays
- Custom pathway creation tool
